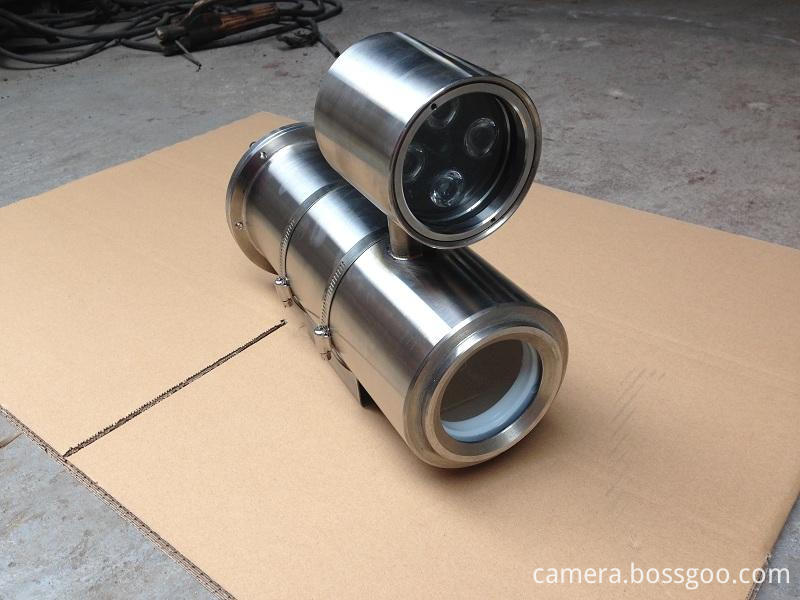

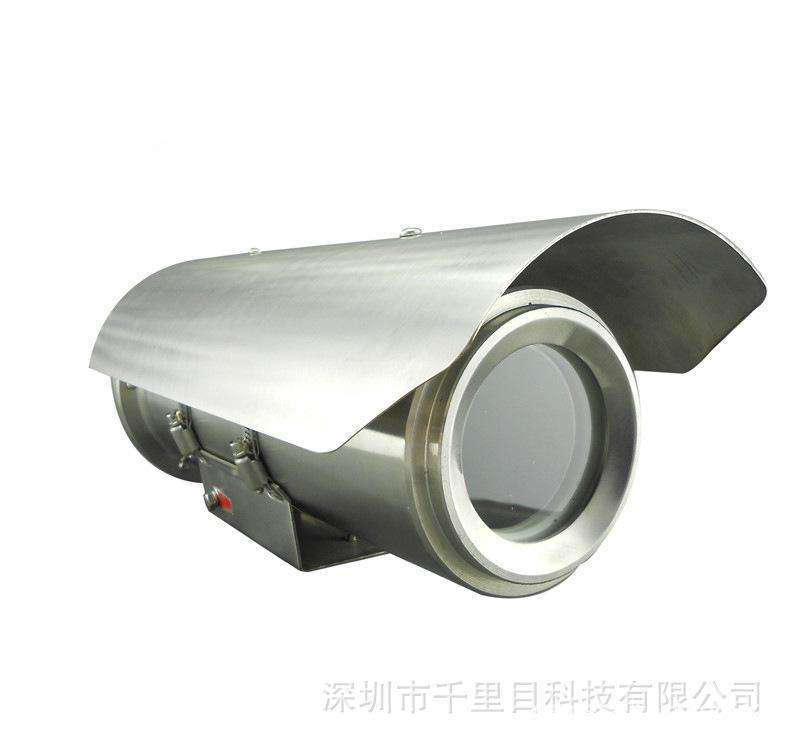

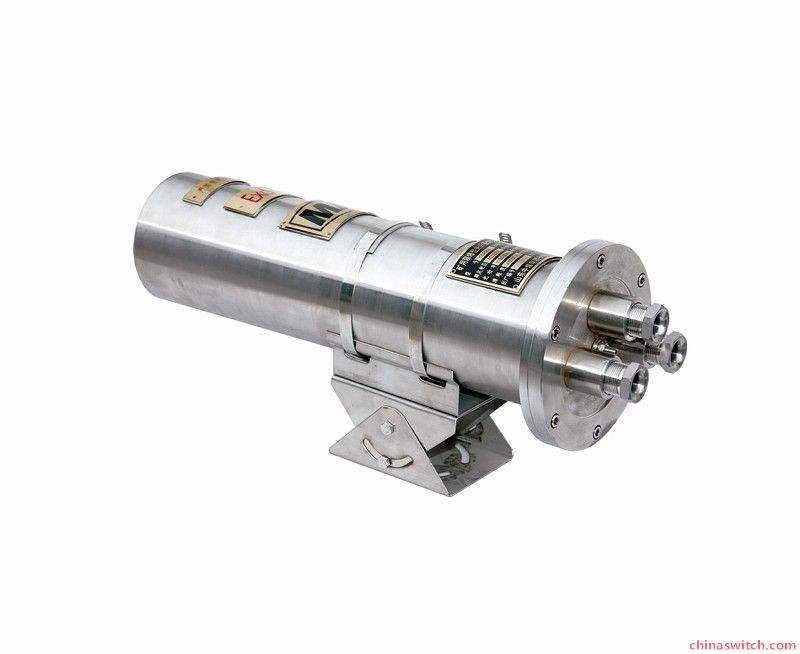

IP68 Explosion-proof stainless steel pan tilt dome housing

  • IP68 Explosion-proof stainless steel pan tilt dome housing
  • IP68 Explosion-proof stainless steel pan tilt dome housing
  • IP68 Explosion-proof stainless steel pan tilt dome housing
  • IP68 Explosion-proof stainless steel pan tilt dome housing

IP68 Explosion-proof stainless steel pan tilt dome housing

    Min. Order: 1 Others
    Transportation: Ocean,Land,Air

Product Description

Industrial IP68 Explosion-proof stainless steel pan tilt dome housing&PTZ Camera
PTZ camera; Dual stainless steel; Accurate step motor,Tour, Auto pan, fast speed, alarm, lightening protector.
Technology specifications:

Double explosion-proof certification, slightly high-risk places for a variety of evil.
Intelligent variable speed function, PTZ speed automatic adjustment with the depth of field;
Built-in power converter,no need for additional ex proof power supply box, the real integrative equipment,easy to install and cost savings;
Built-in lightning-proof protection, lightning-proof, surge-proof;
Built-in heating function, can be used in low temperature environment,dome temperature and ambient temperature display;
Adopt the high-quality motor, low heat dissipating capacity, low-speed operation without jitter;
Low temperature power protection;
A variety of camera programmes selection;
Beautiful appearance,corrosion resistance;
Built-in OSD english/chinese menu, friendly interface and easy to operate;
CVT,Continuously 360° horizontal rotation and vertical 180°auto-flip;
4 cruising route(256 preset point/route);
4 pattern scan,4 scan lines,8 regions,8 privacy;
Compass function,the screen shows the coordinate directions;
Smart image enhancement: support, strong light to penetrate the fog.
Run memory automatically,prevent loss after power down;
Recovery to run automatically after manual operation;
Optional quickfit interface, with hot plug function
Compatible with almost all the controlling devices such as DVR, AVR, matrix etc
Bottom housing made of polycarbonate composite aviation material,hardened,anti-fog treatment,with sufficient strength and excellent corrosion resistance.

Explosion Proof CameraExplosion Proof CameraExplosion Proof CameraExplosion Proof Camera
Model SPD-EX65-S7
Certification Parameter
Manufacturers Standard IEC60079, IEC21641, GB3836-2000, GB12476.1-2000
Material 304 / 316L Stainless steel
Configuration Mode Integrated Dome Shape
Explosion-proof Mark ExdCT6 / DIP A20 TA,T6
IP IP68
Operating Temperature -105
Humidity ≤95%
Cable Entries 1×G3/4 Explosion-proof cable entry , Dia. of inner hole Φ15
Mechanical Features
Back Box Material 304 / 316L Dual stainless steel
Electric Motor Accurate step motor, Preset resolution 0.02°
Transmission Structure

Electric conduction link,

High strength aluminum alloy (LY12) gear with synchronous belt

Weight 12 Kg
Control Mode
Communication Multi-protocol (PELCO-D, PELCO-P etc. ), RS485
Bit Rate 2400 / 4800 / 9600 bps
OSD On / Off, English Menu
Pan/Tilt
Preset Positions 128
Pan / Tilt Range Pan: 360°Continuously; Tilt: -2°~ 90°(180°Auto Flips)
Pan / Tilt Speed Pan: 0.1°~ 240°/s (continuous control); Tilt: 120°/s
Camera
Optional Camera SONY HITACHI SAMSUNG LG CNB YOKO All-in-one camera module
Power Supply
Voltage 12V DC / 220V AC
Current 2A / 0.5A
